'Allegheny' Class Sample Model Three

Kohs H-8
UP

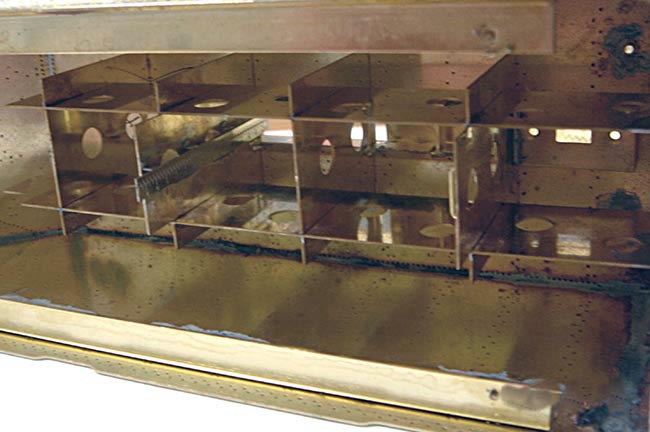

An inside look at the water tank which shows all of the correct baffling in place. If you look at the second compartment from the left in the center you will see the water measuring board which was used by the crew to determine how much water was on board, there were other means to do this, but they were not nearly as accurate as the measuring board.
