Norfolk & Western C2 Version Construction

The photos below are of an early sample model for this project, please keep in mind the design is not complete or finalized, there is more work to be done.

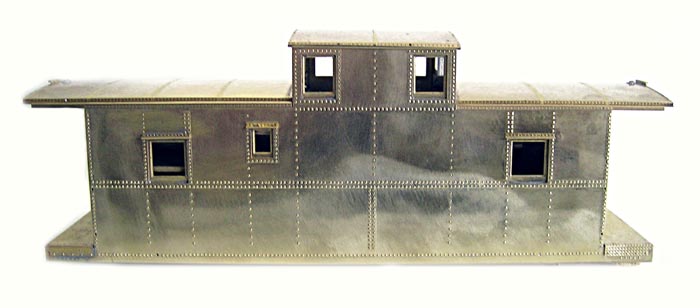

An elevation view of the carbody shows the fabricated multi-level detail used in the construction and it also highlights the use of punched rivets. We always use punched rivets unless the required detail is too small to allow for it.

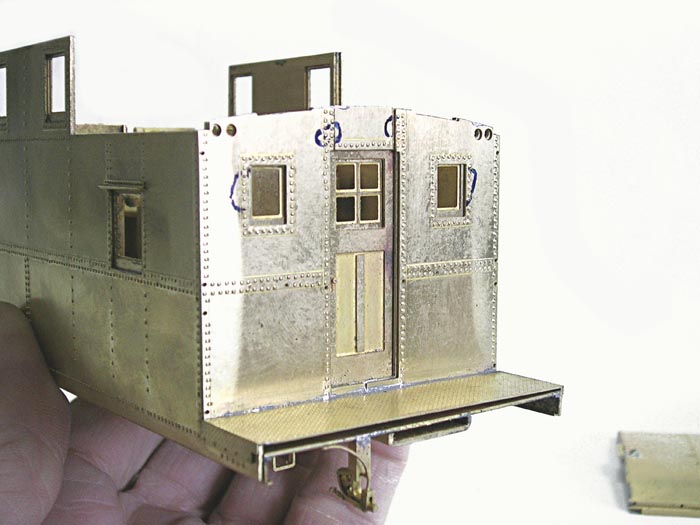

An end views shows the level of detail employed even with the door and of course it does open.

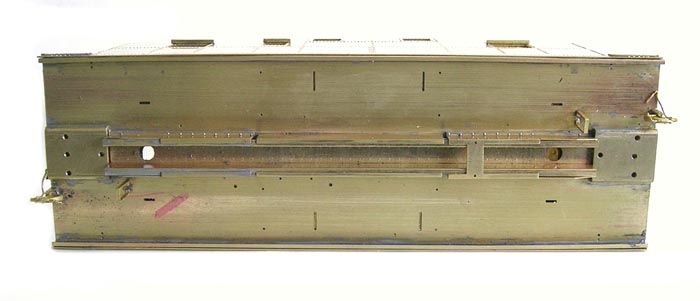

Above is the beginning of complete underbody detail, prototypical down to the center sill construction.

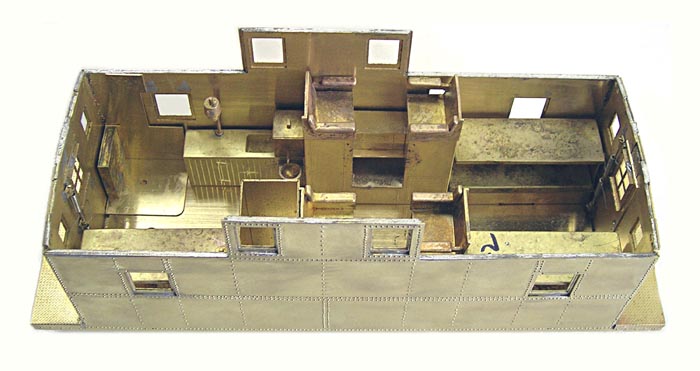

The interior will have all appropriate detail along with regulated lighting, You can see that even the sink cabinet is wood grained.

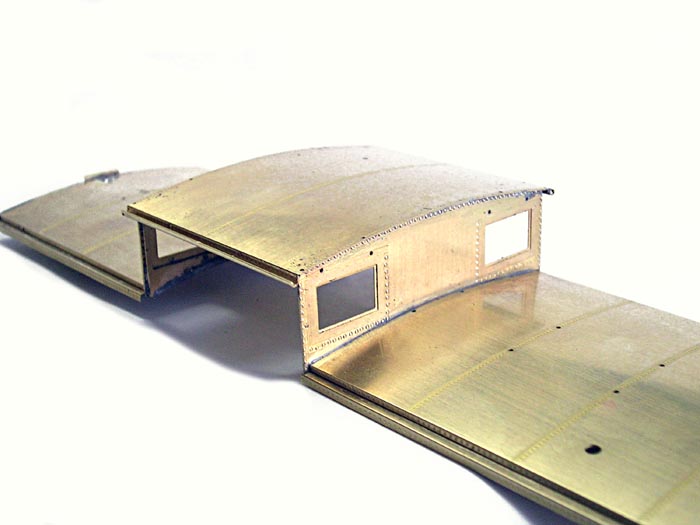

The roof will be removable to allow for the inspection of the completed interior detail, this will be accomplished without altering the correct outward appearance.
